BOLDSERIES

Technical specifications

MPRINT

Technical specifications

MPRINT

Powder Supply

  • 4 supply cartridges
  • 250% oversupply of the build volume

Process chamber

  • X-profile powder application
  • 100 W laser power
  • 100 µm focus diameter
  • up to 200 mm/s scanning speed

Build module

  • 150 mm x 150 mm x 150 mm
  • 20-200 µm layer height
  • <5µm z-resolution

Replaceable safe filter

Connection and consumption

  • Power supply: 230 V / 50-60 Hz
  • Fuse protection: 16 A
  • Inert gas: Nitrogen

Type of construction

  • Dimensions WxHxT: 0,98 x 1,8 x 0,66 m
  • Weight: 450 kg

Technical specifications

MPURE

Unpacking chamber

  • Glove box for bulk powder removal
  • Automated turntable for undercut and internal powder removal
  • Connector for external ATEX vacuum cleaner

Sieving unit for powder recycling

  • Ultrasonic sieve
  • Sieved powder in supply cartridge for reusage
  • Oversize powder in junk cartridge for disposal

Type of construction

  • Dimension WxHxT: 0,98 x 1,8 x 0,66 m
  • Weight: 350 kg
MPURE

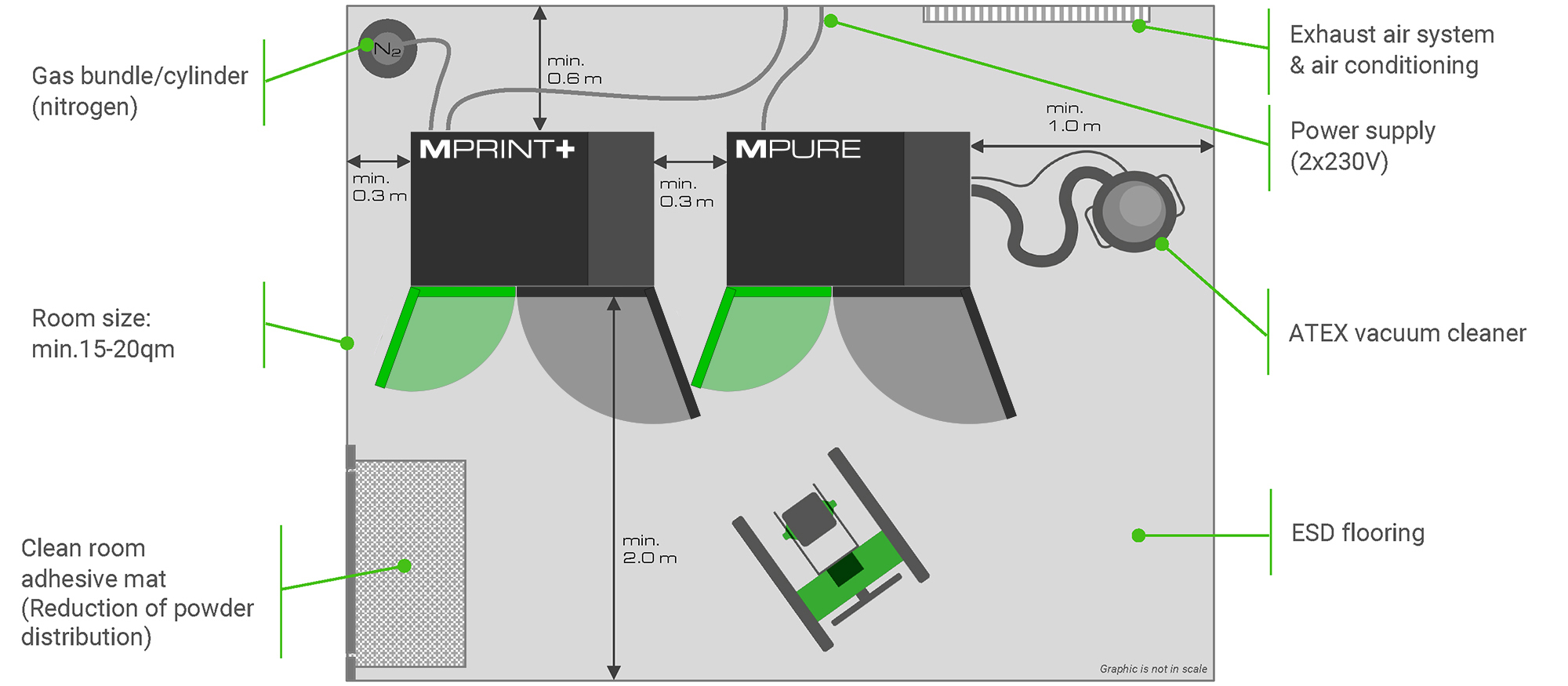

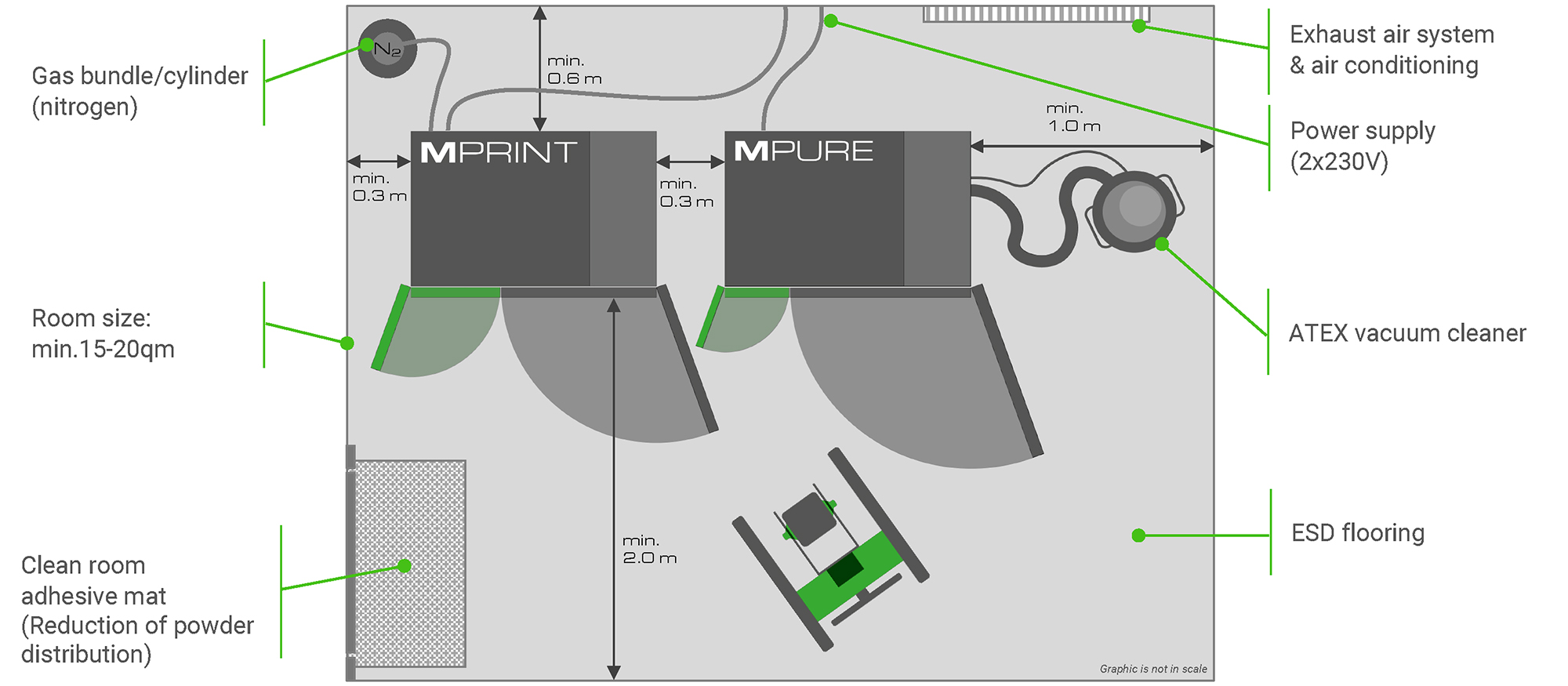

Installation conditions

(Recommendation/Best Practice)​
