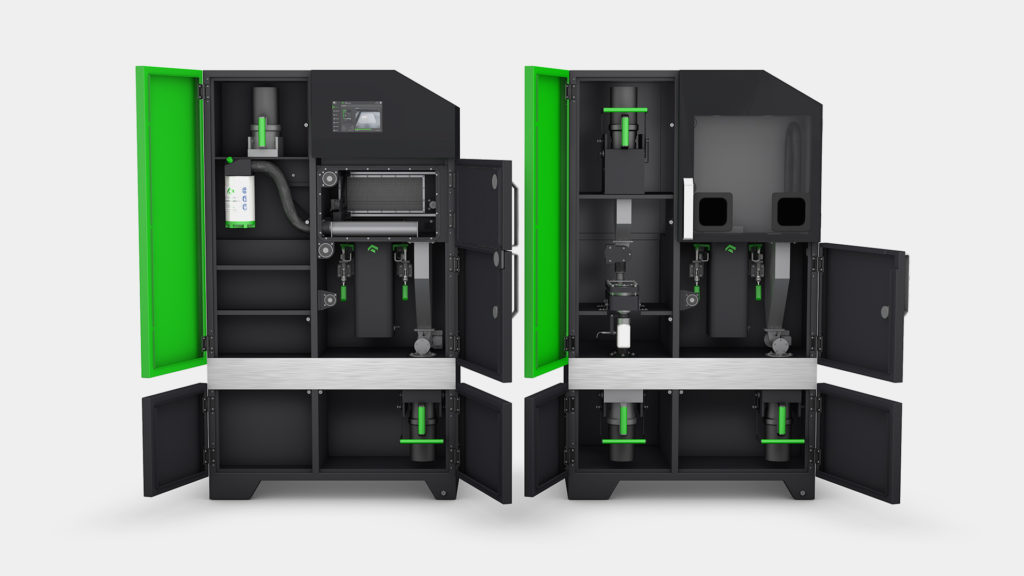

BOLDSERIES

The affordable metal 3D printing system perfect for the beginner

BOLDseries_open

The advantages at one glance

enables an optimally coordinated system chain

for easy and safe powder handling

supports and guides the user from beginning to end

allows rapid access into AM-technology

Holistic product solution

enables an optimally coordinated system chain

ocm_mprep

1. Data preparation

The MPREP is the low-cost solution for data preparation and makes expensive additional software unnecessary.

The scope of features can be flexibly adapted to the user’s wishes thanks to the 3-stage model (Basic, Premium, Ultimate).

With presettings, automatic calculations and simulations, data preparation is easier than ever.

ocm_hmi_prepare

2. Print preparation

Before you start printing, you have to prepare it accordingly.

The user interface (also called HMI=Human Machine Interface) of the system will help you and guide you with our step-by-step instructions through the individual action sequences.

Every time you successfully complete an action, you can check it off and start the next one

This ensures that you won’t forget anything and the printing process can get started.

ocm_lpbf

3. Printing process

Due to the user-oriented machine control the handling of the metal 3D printer has turned into an easy task.

Quality at a low price: Our high performance laser (100W) is based on a TRUMPF diode laser and thus benefits from many years of experience.

The cartridge system ensures a safe and clean powder handling.

ocm_unpacking

4. Unpacking process

By external interventions the component can be unpacked and depowdered without direct powder contact.



The automated turntable enables an easy depowdering process of the component.

Once processed, the powder is stored in a collection cartridge.

Powder can be removed with a closed unpacking chamber without direct powder contact thanks to the integrated ATEX connection.

ocm_sieving

5. Sieving process

Once processed, the powder is purified by the integrated ultrasonic sieving station.

Sieved and recycled powder will be collected in a cartridge and can be re-used directly for the next print job.

Powder and cartridge system

for an easy and safe powder handling

Co-thinking-philosophy

supports and guides the user from beginning to end.

You are lacking knowledge and experience in metal 3D printing? No problem, we think along for you.

Step-by-step instructions and the poka yoke design help you to operate our BOLDseries. Therefore, you can ensure immediate success and avoid any costly mistakes.

Our step-by-step instructions show you exactly what to do. Preparing, starting and cleaning: Easy-to-understand instructions for each phase of the printing process.

For example: four steps for inserting the build modul.

The handling of the BOLDseries is simplified by our colour coding. Just remember: green colour = here you can/must do/operate something

If something goes wrong anyway – don’t worry, we think along for you: the machine will send you immediate feedback on potential errors.

Low financial entry barrier

allows rapid accessinto AM-technology

Manageable investment
Fast and affordable entry into metal 3D printing technology for less than 90.000€.

Cost transparency
You can find our recommended retail price on the website or in the WebShop. All consumables and supplies are transparently visible in the WebShop for you and your calculation before buying the machine.

Price-performance ratio
We want you to know where you stand. Therefore we are transparent in our pricing and offer you the lowest possible price to avoid discount negotiations. We want clear prices for a clear service.

MPREP

Data preparation software

from € 100 per month

excl. VAT.

Manufacturer’s suggested retail price

MPRINT

Metal 3D printer

€ 54.900

excl. tax / plus shipping

Manufacturer’s suggested retail price

MPURE

Unpacking station incl. sieving unit

€ 21.900

excl. tax / plus shipping

Manufacturer’s suggested retail price
