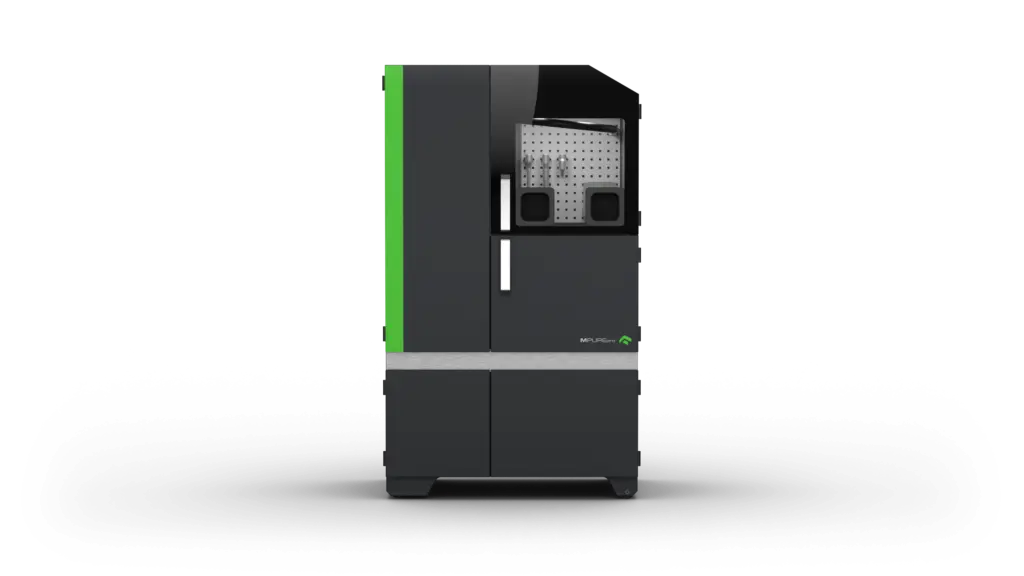

BoldSeries

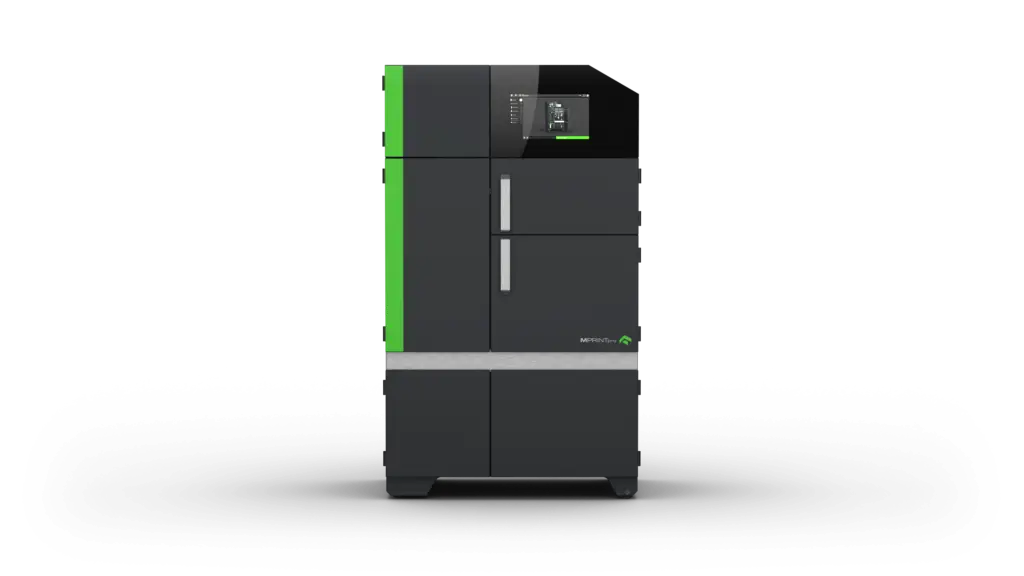

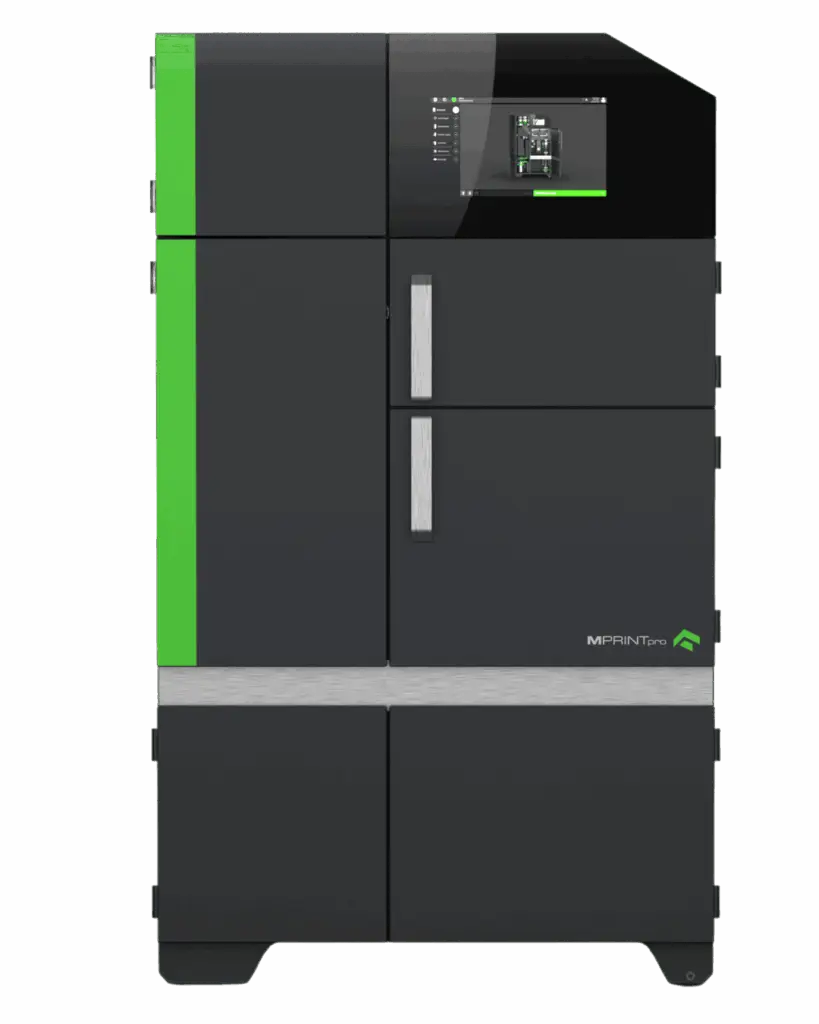

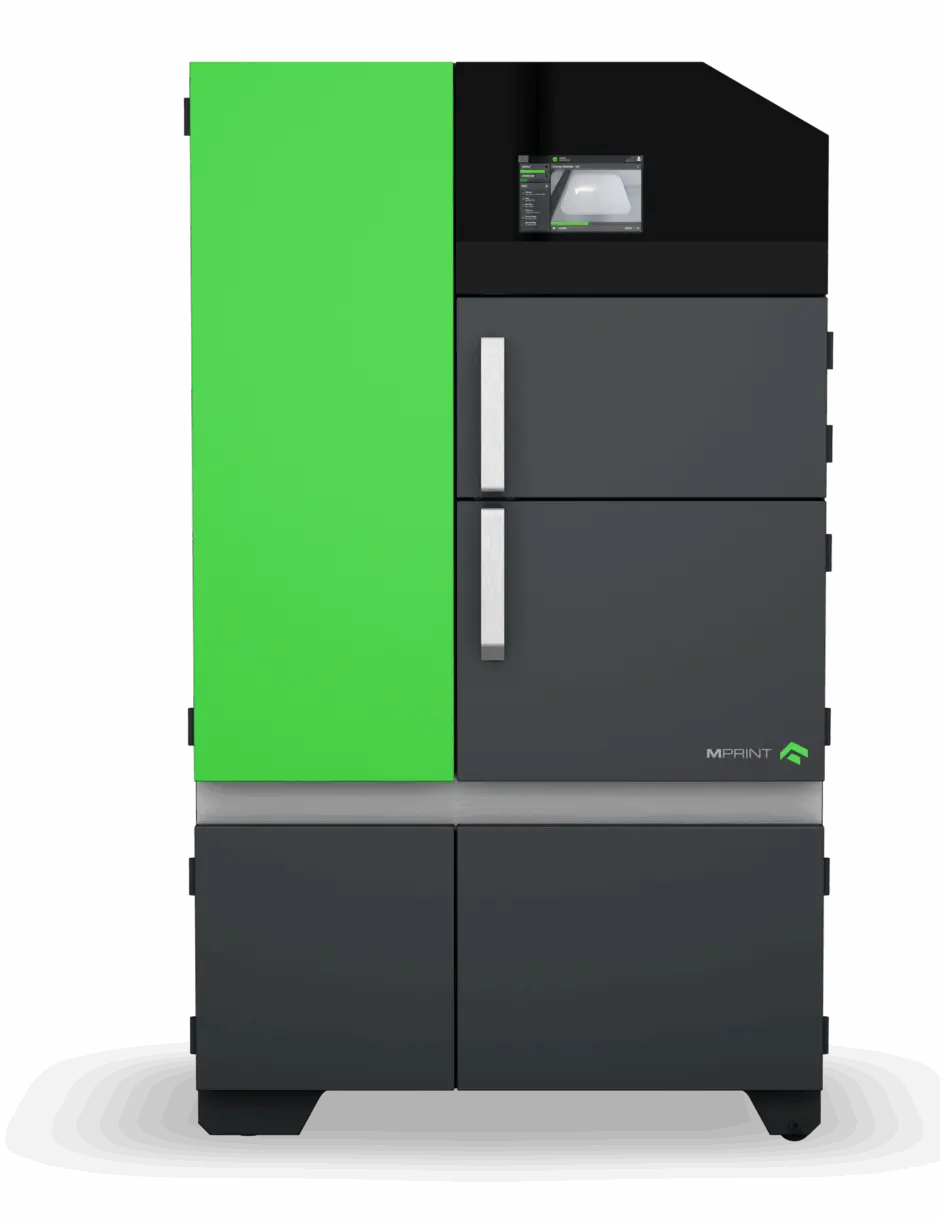

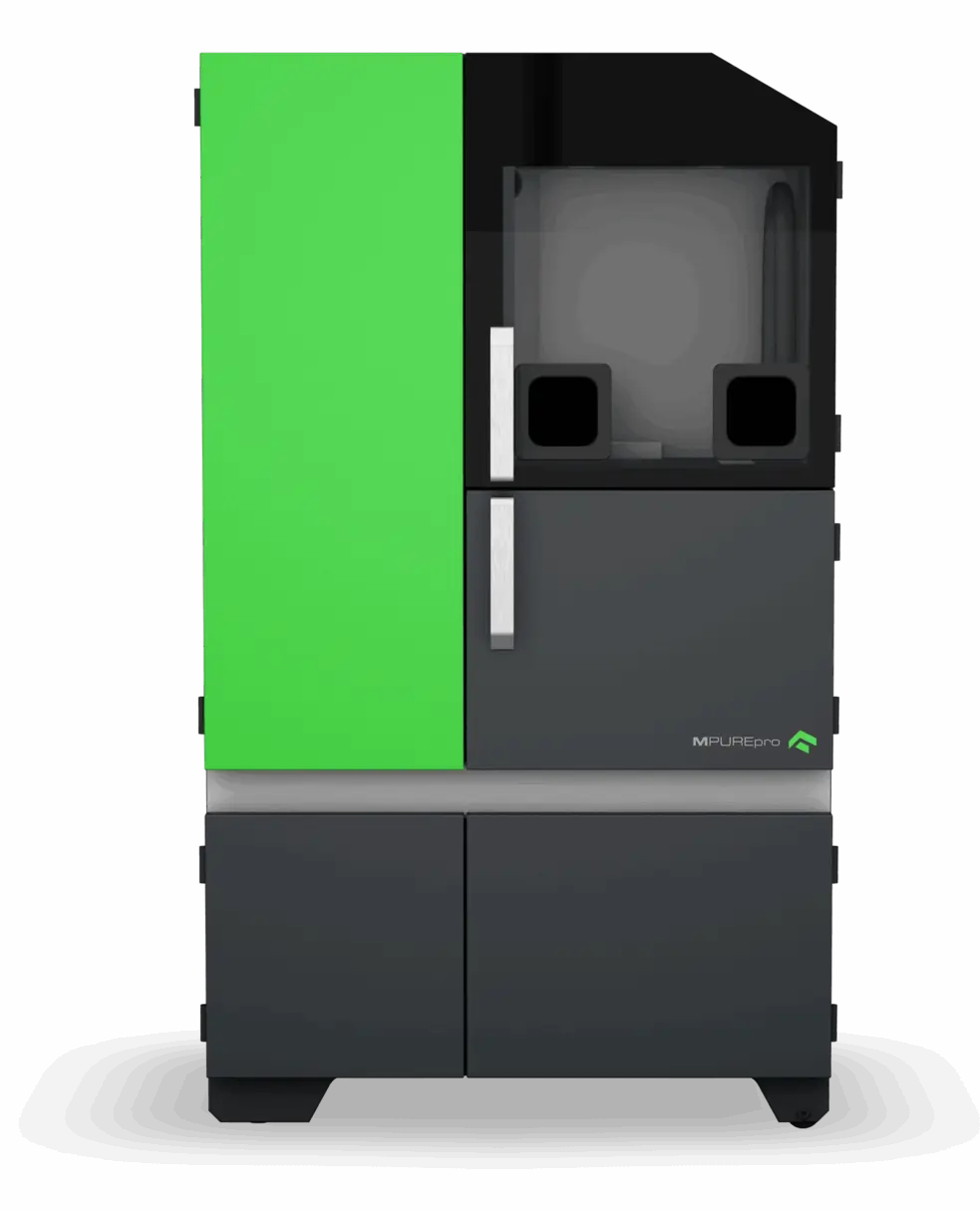

Metal 3D Printer

Unpacking station

Preparation software

BoldSeries

_closed material system w/ powder cartridges

_100 W laser power
_150 x 150 x 150 mm³ build volume

_simplified unpacking process
_integrated sieving unit

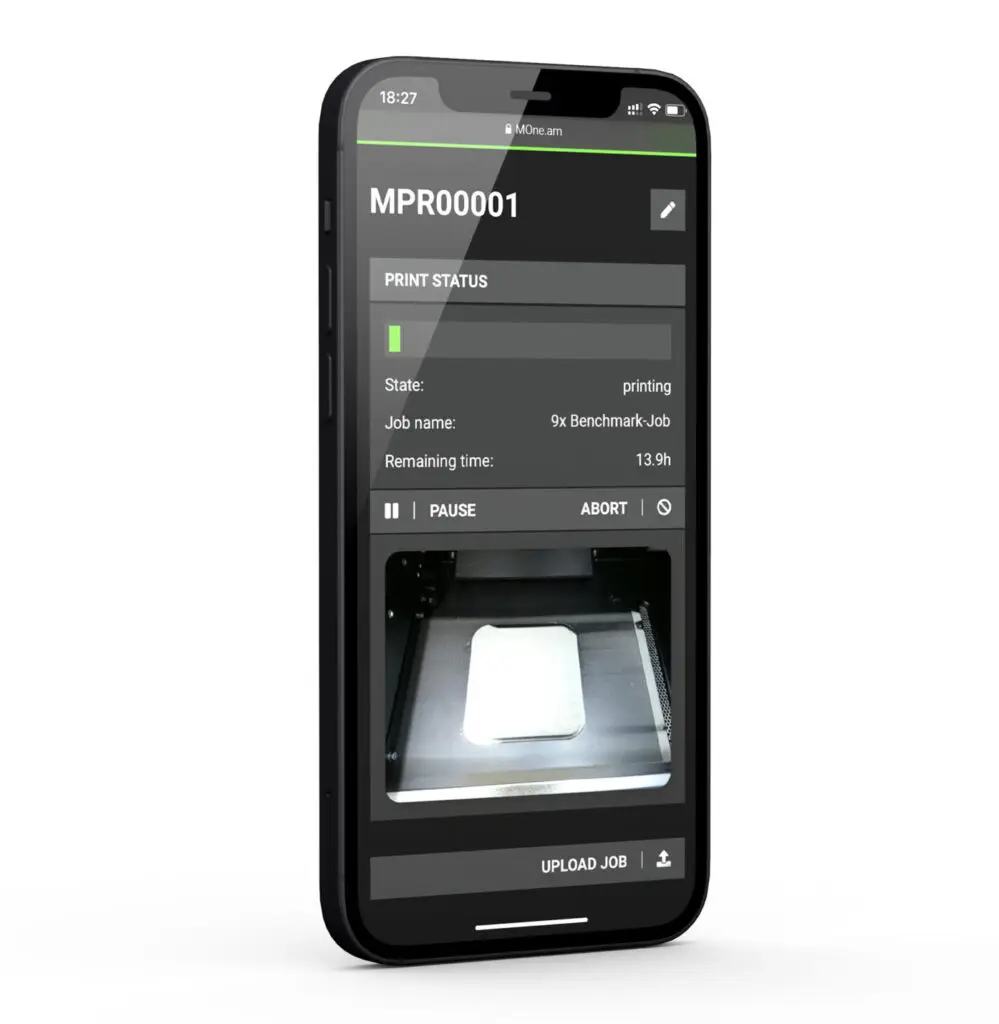

_intuitive HMI and preparation software

Powder supply
_ 4 powder cartridges
_ 250 percent oversupply
Process chamber
_ X-profile powder application
_ 100 W laser power
_ 100 µm focus diameter
_ up to 200 mm/s scanning speed
Replaceable gas filter

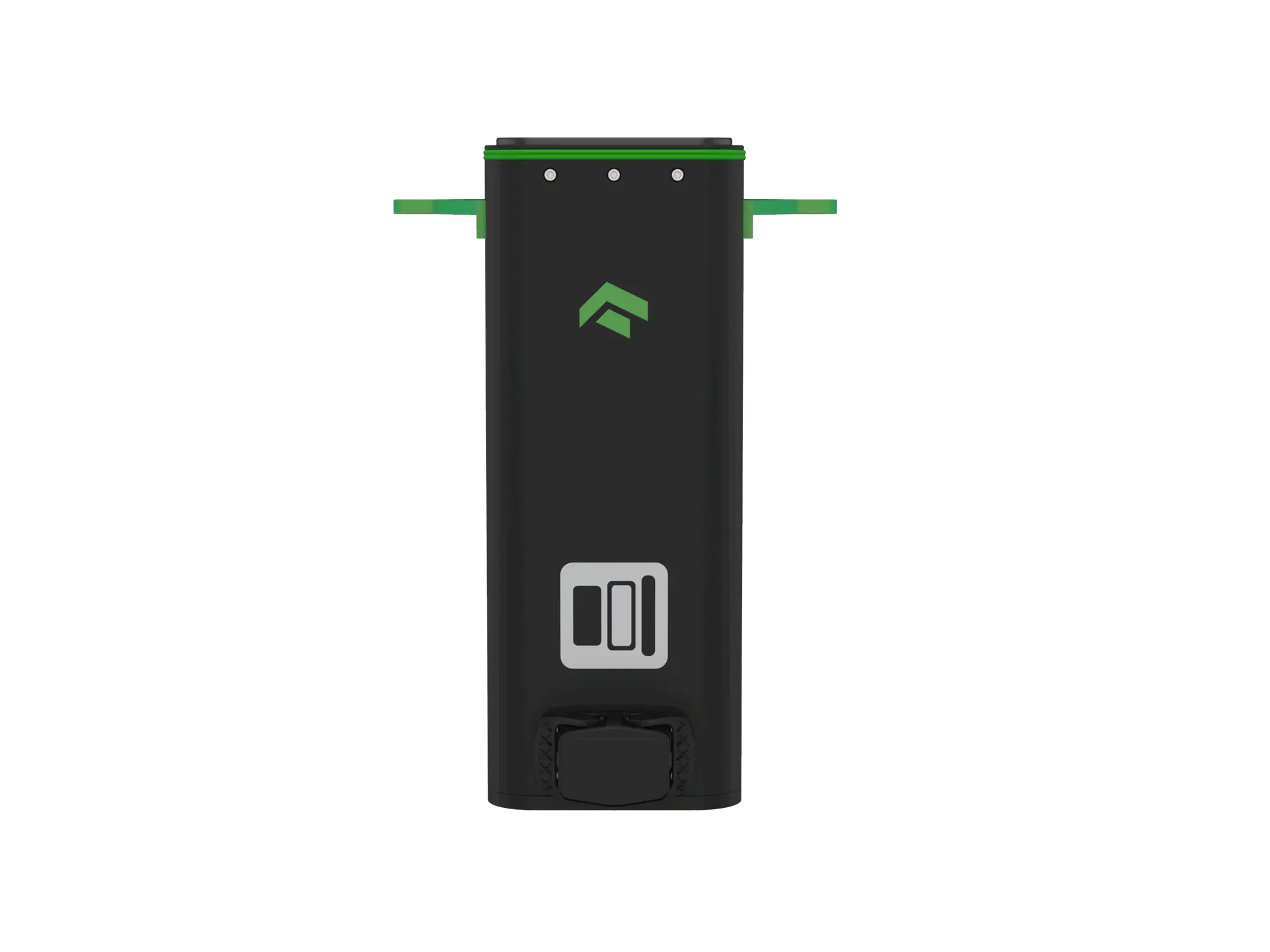

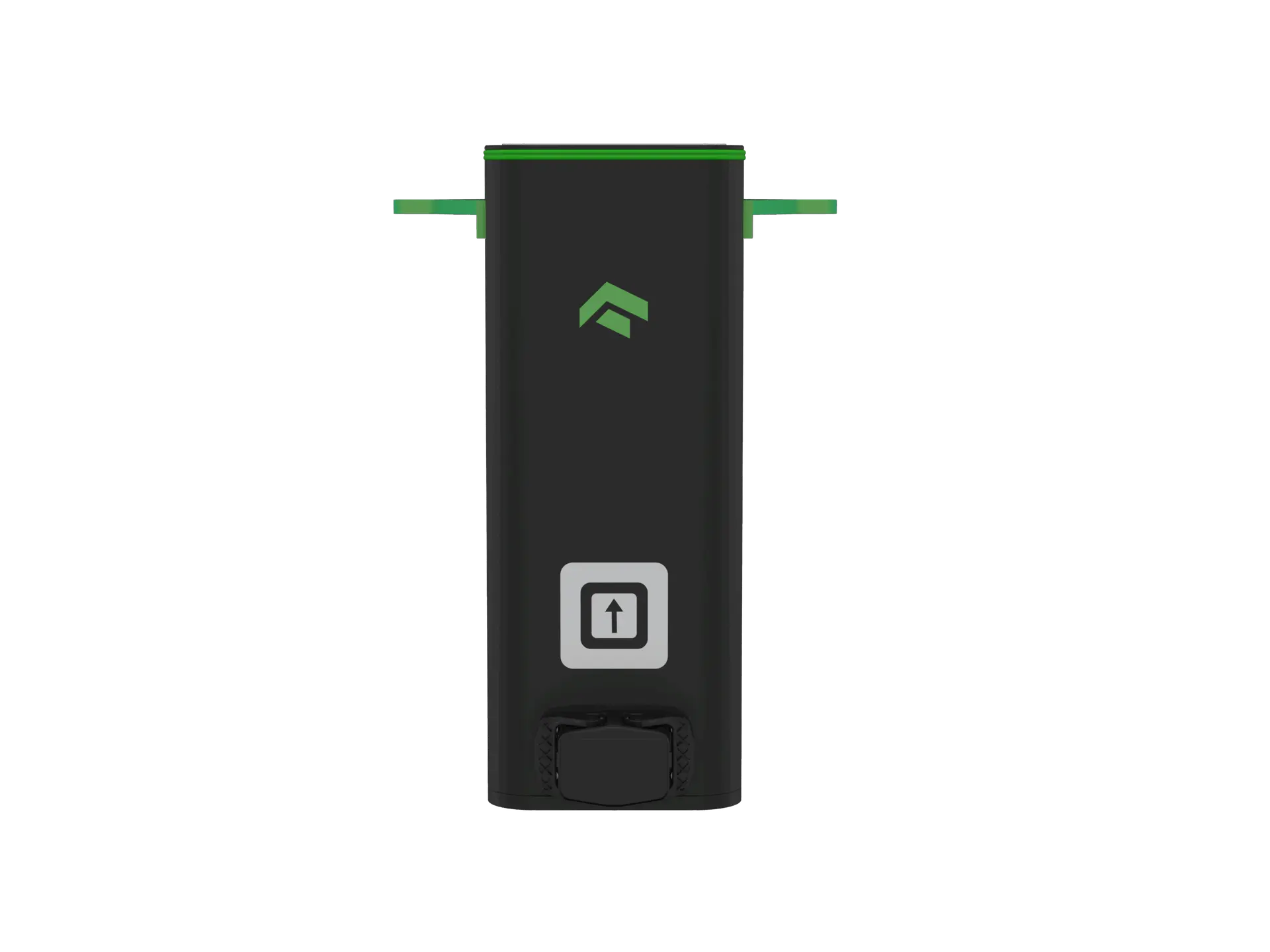

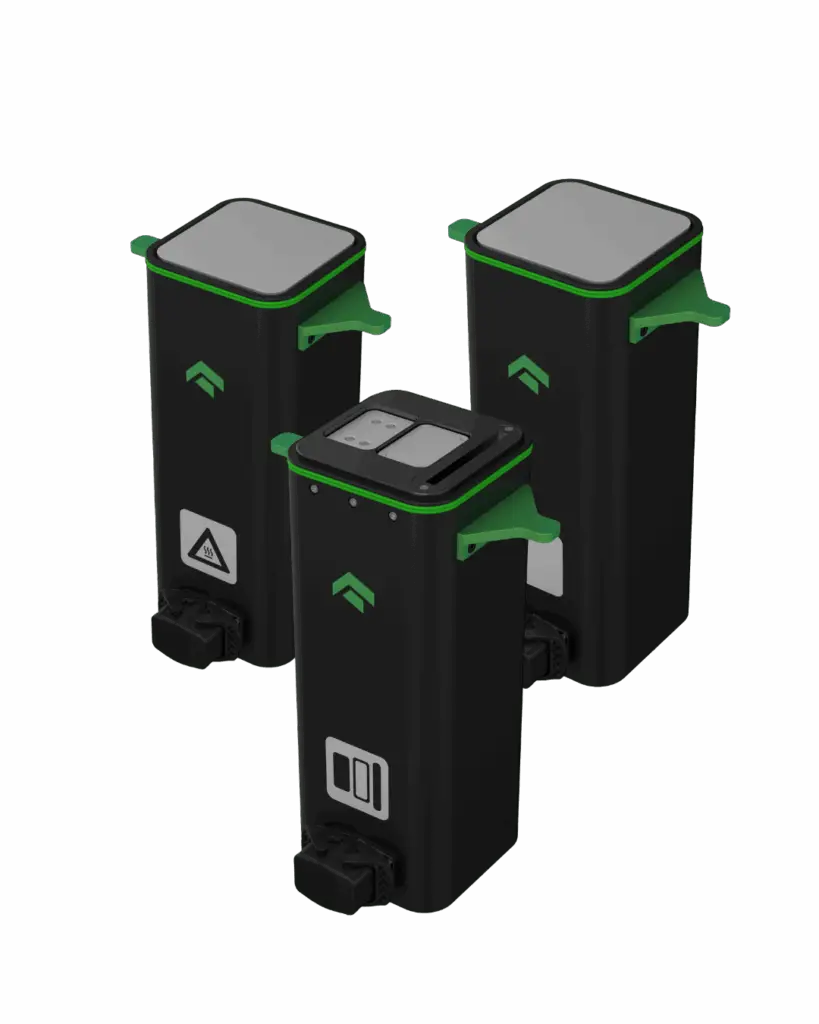

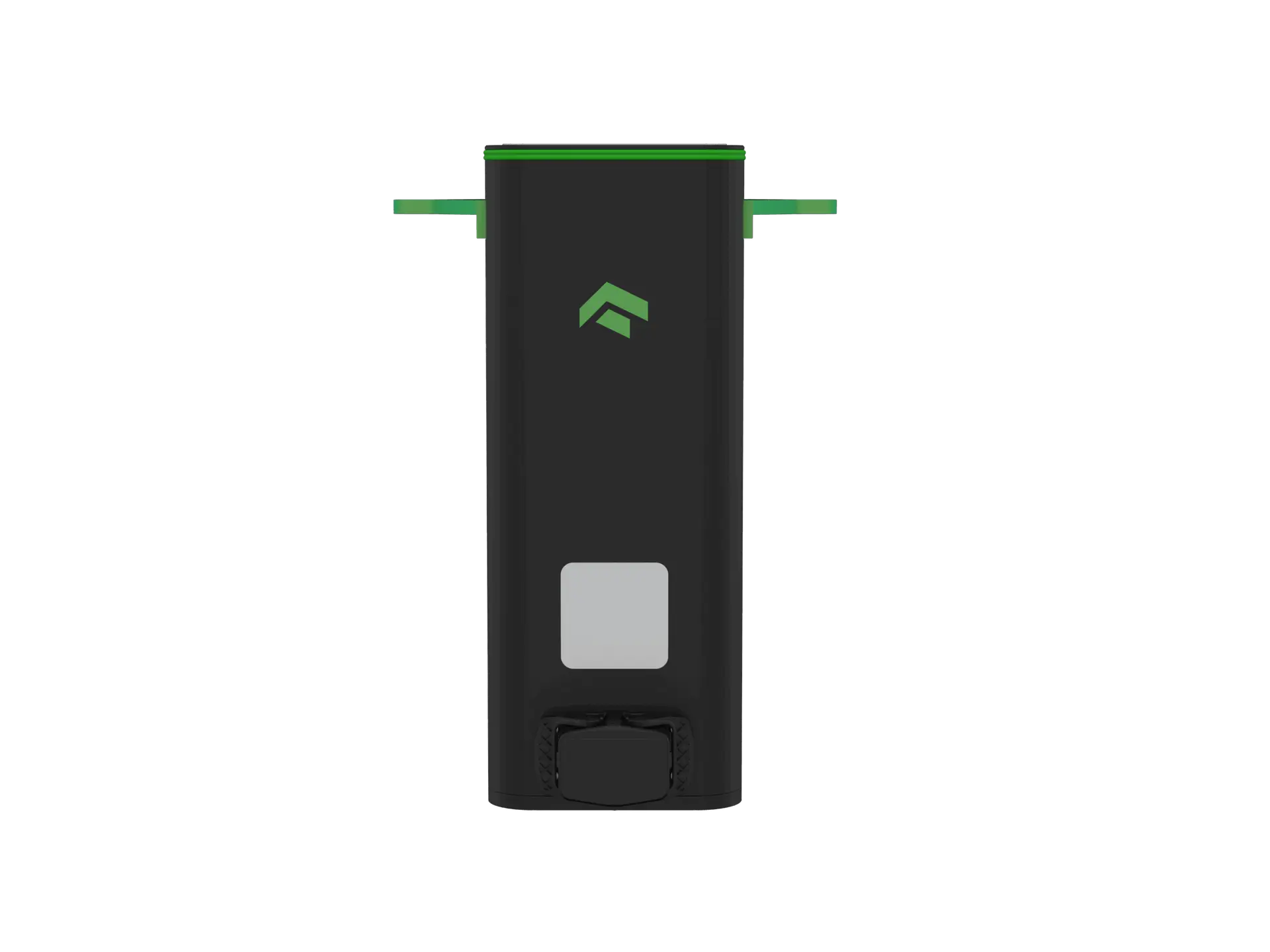

Build module
_ 150 x150 x 150 mm³
_ 20-100 µm z-resolution
_ >99.5 percent component density
Overflow powder
_filled in powder cartridge

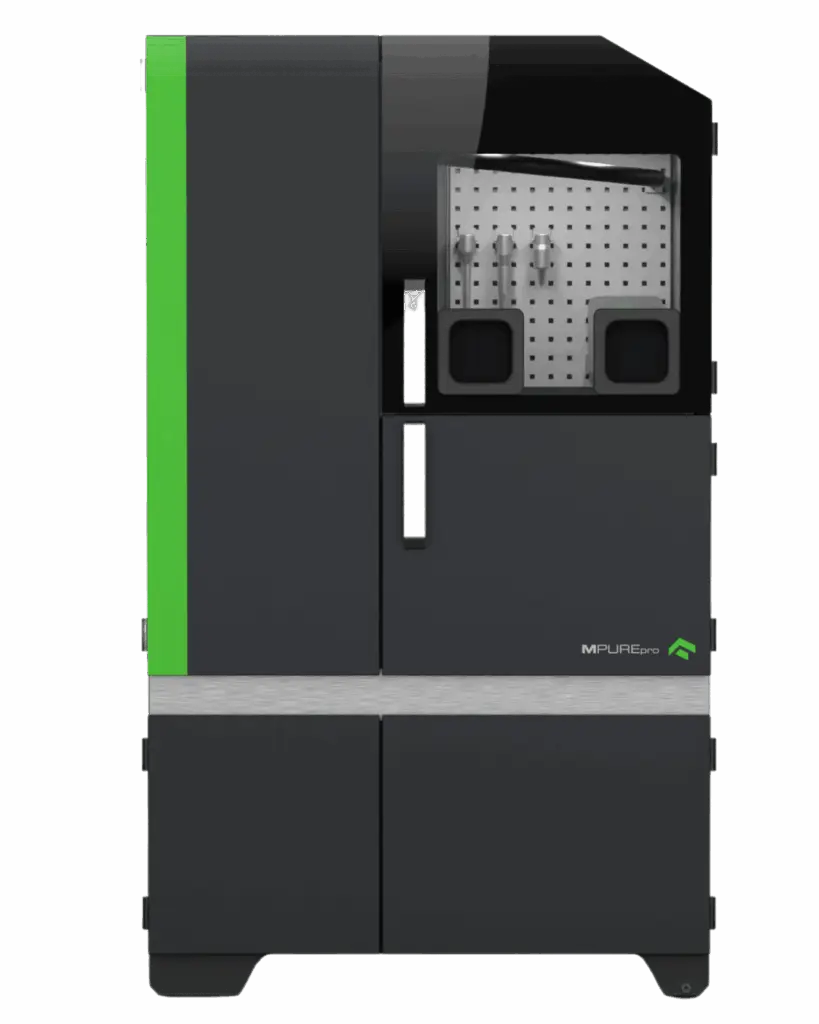

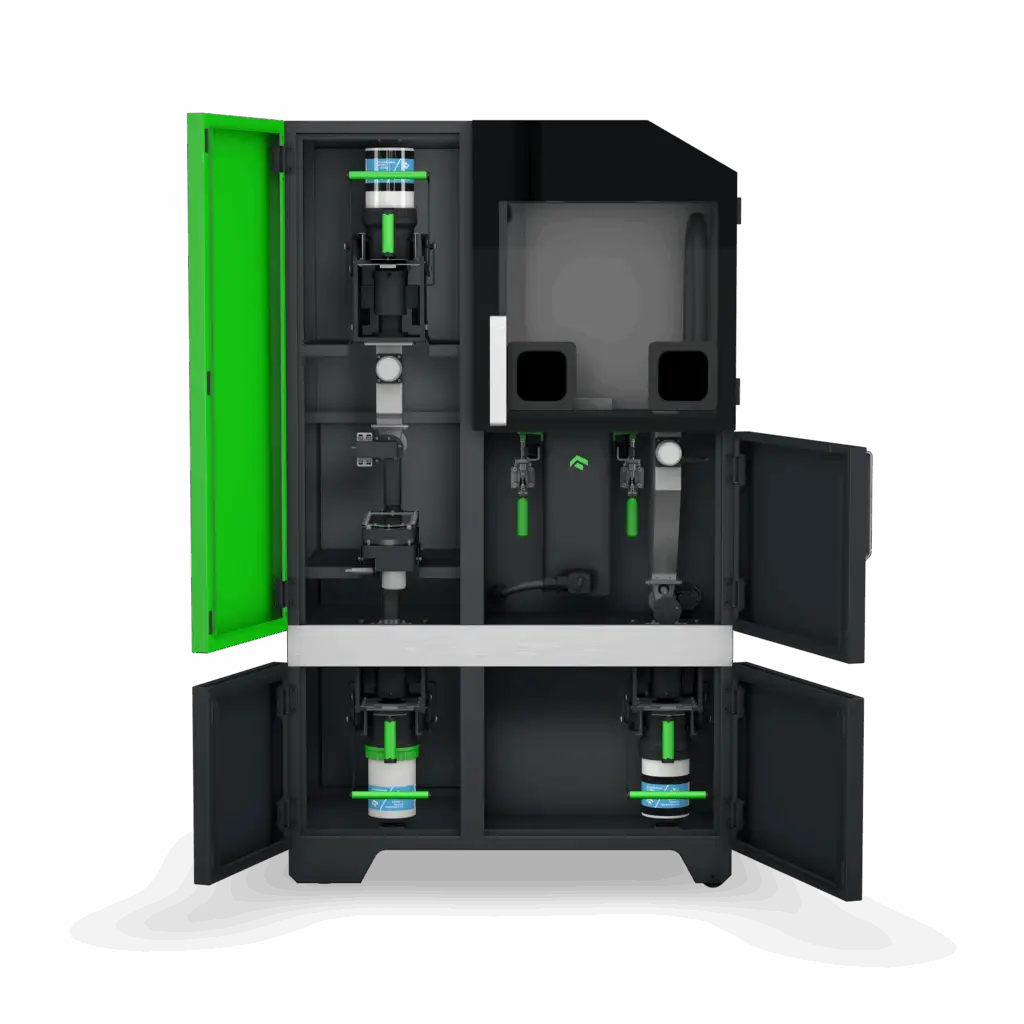

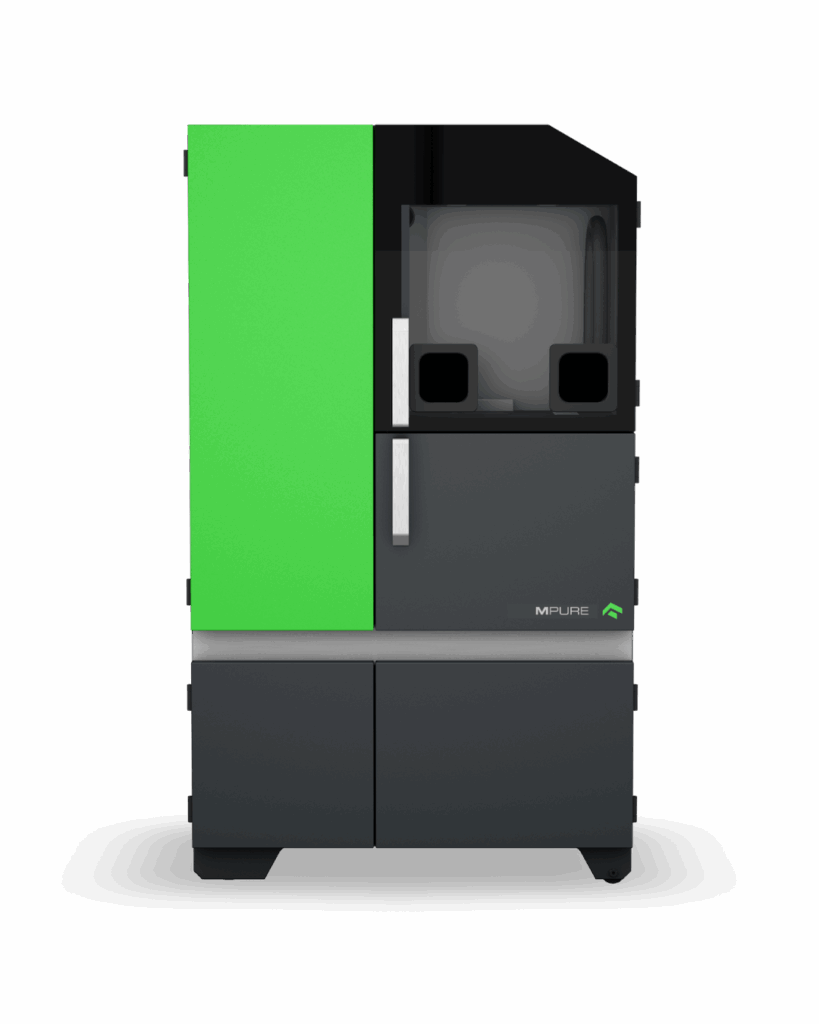

Unpacking chamber
_Glove box for bulk powder removal
_Automated turntable for undercut and internal powder removal
_Connector for external ATEX vacuum cleaner
Sieving unit for powder recycling
_ultrasonic sieve
_sieved powder in supply cartridge for reusage
_oversize powder in junk cartridge for disposal

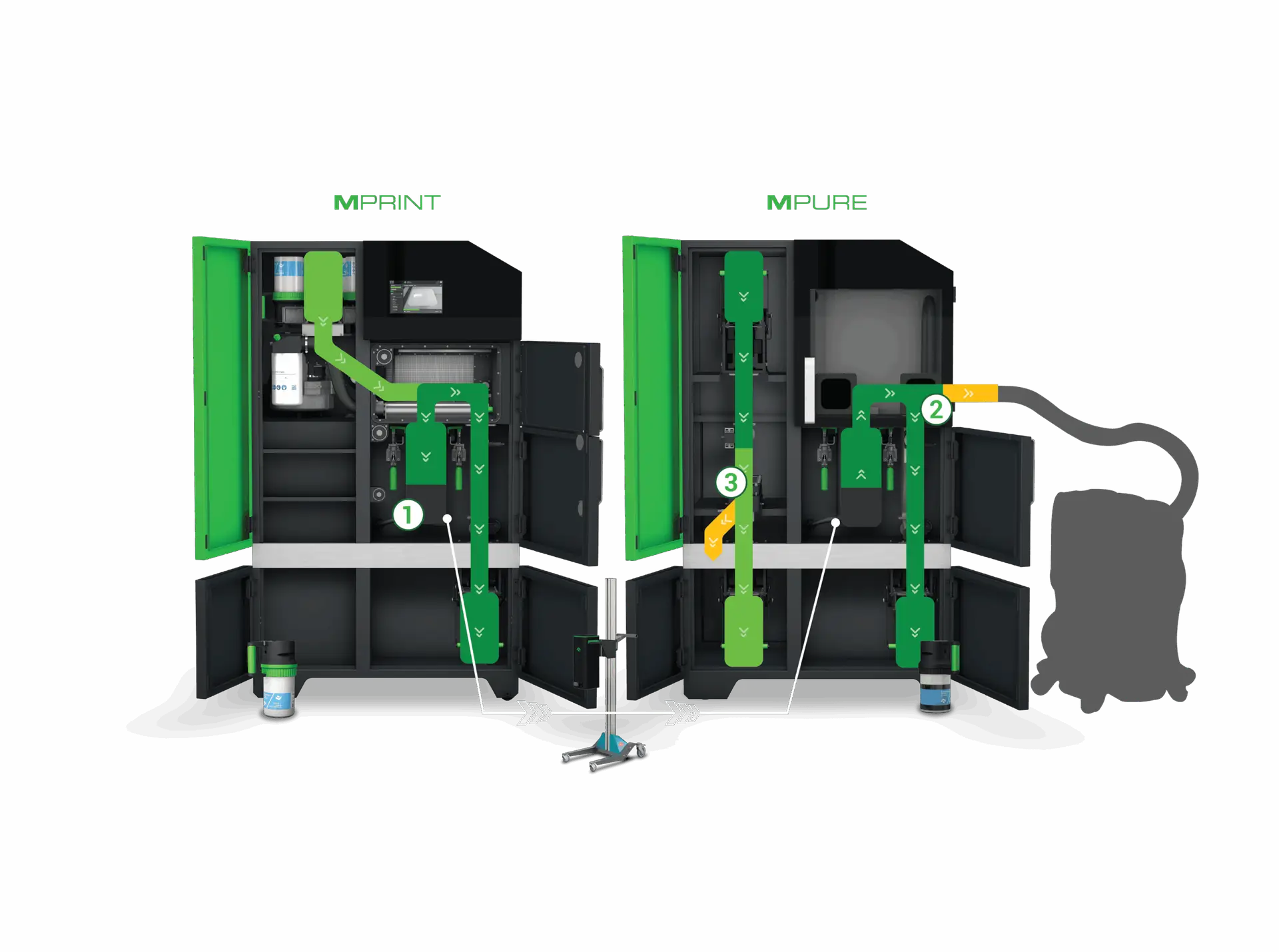

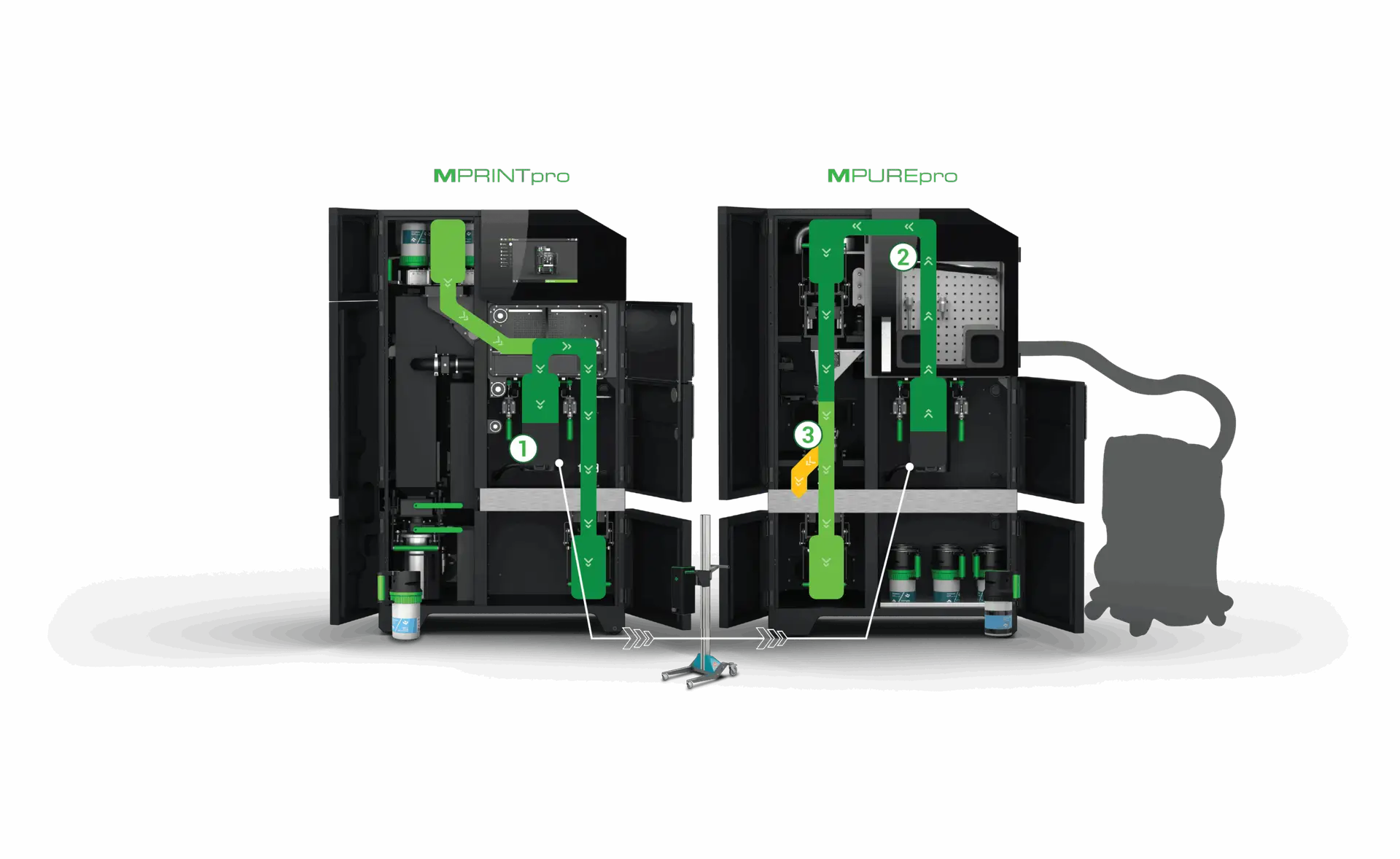

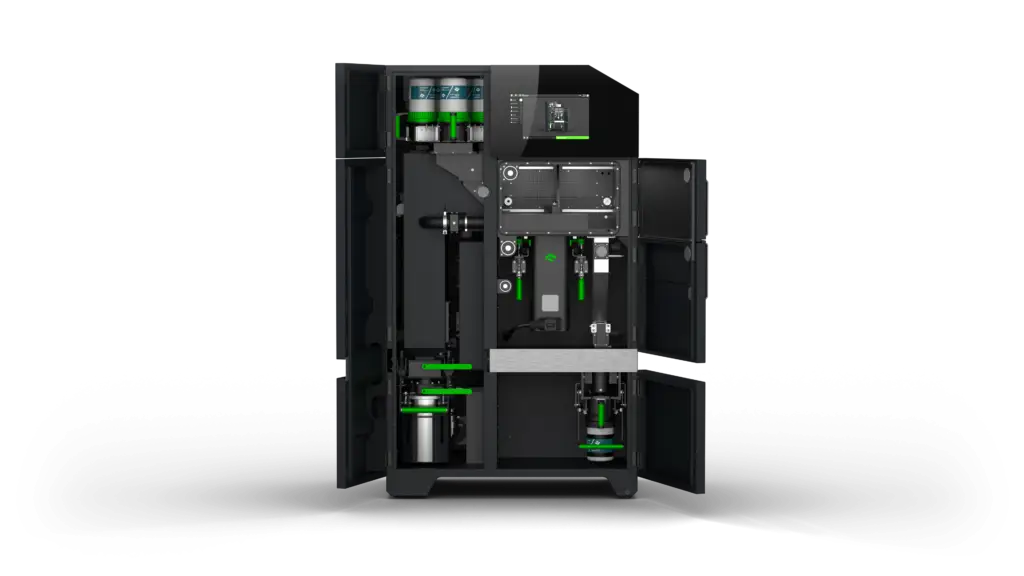

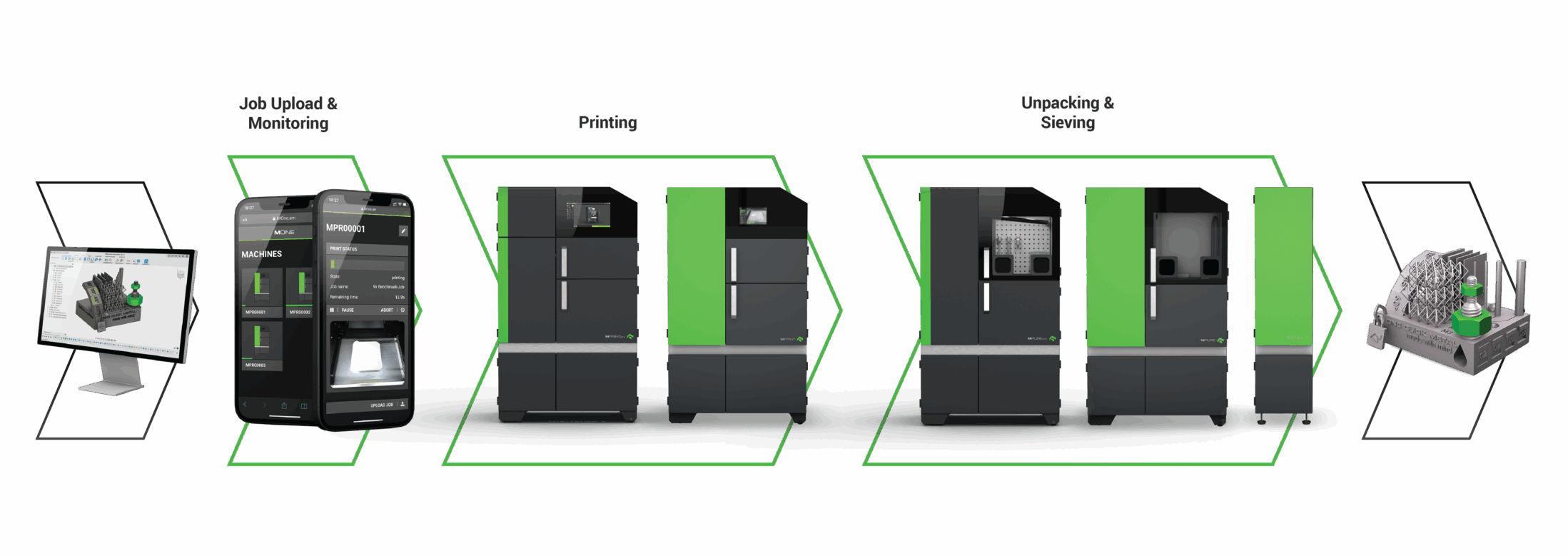

Powder circulation

_Cartridge system keeps powder away from operator

_Powder supply via supply cartridge

_Collection of overflow powder in overflow cartridge

_Automated turntable simplifies unpacking process

_Recycling of overflow powder in sieving station

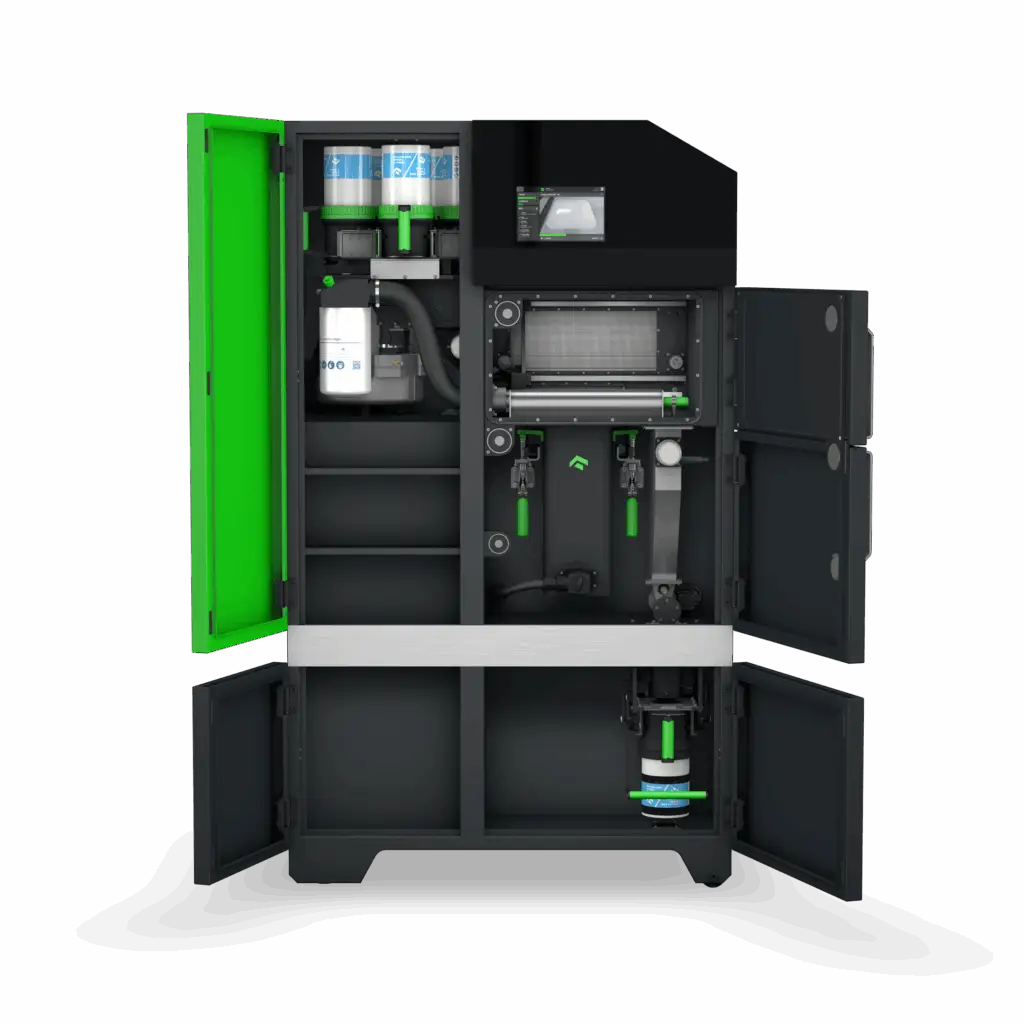

Powder supply w/
_4 supply cartridges
_250 % oversupply

Process chamber w/
_X-profile powder application
_100 W laser power
_100 µm focus diameter
_up to 200 mm/s scanning speed

Replaceable gas filter

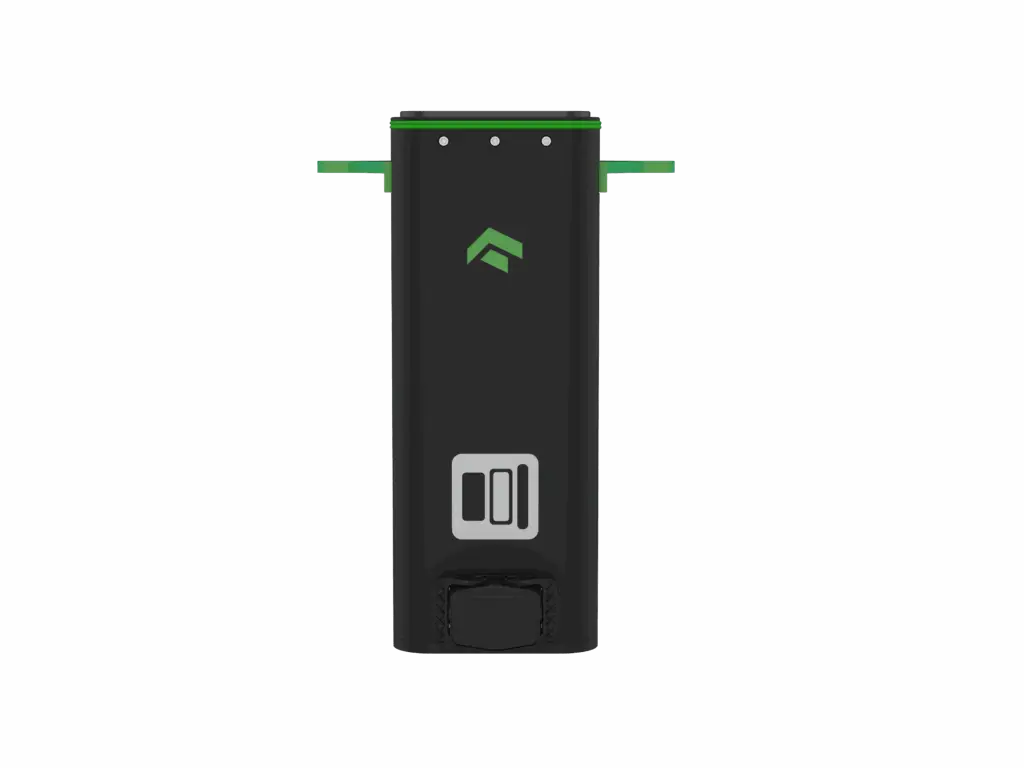

Build module w/
_150 x 150 x 150 mm³
_20 – 200 µm layerheight
_< 5 µm z-resolution

includes at delivery: substrateplate, build module, coater medium, prefilter, gas filter, hepa filter, O2 sensor

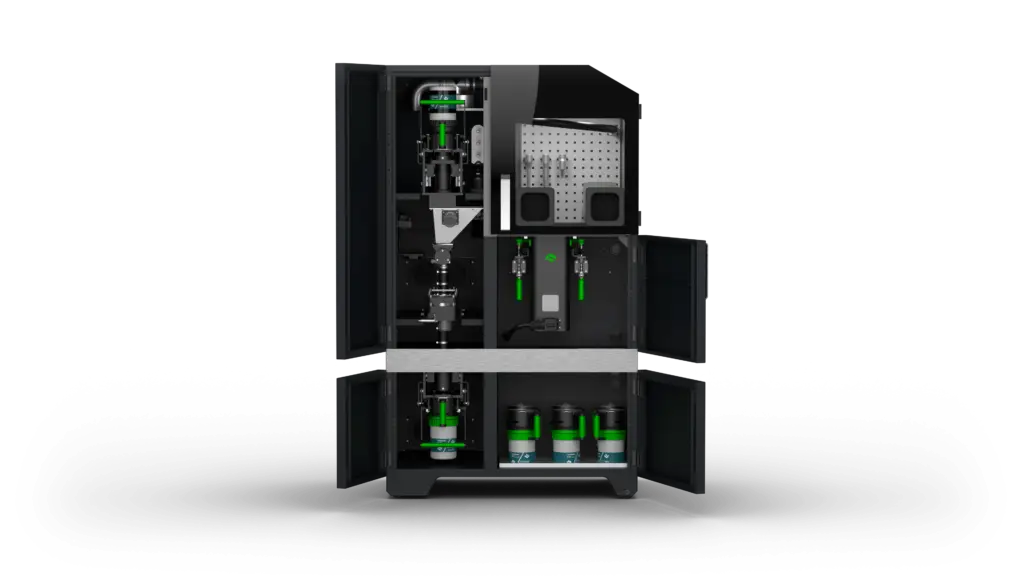

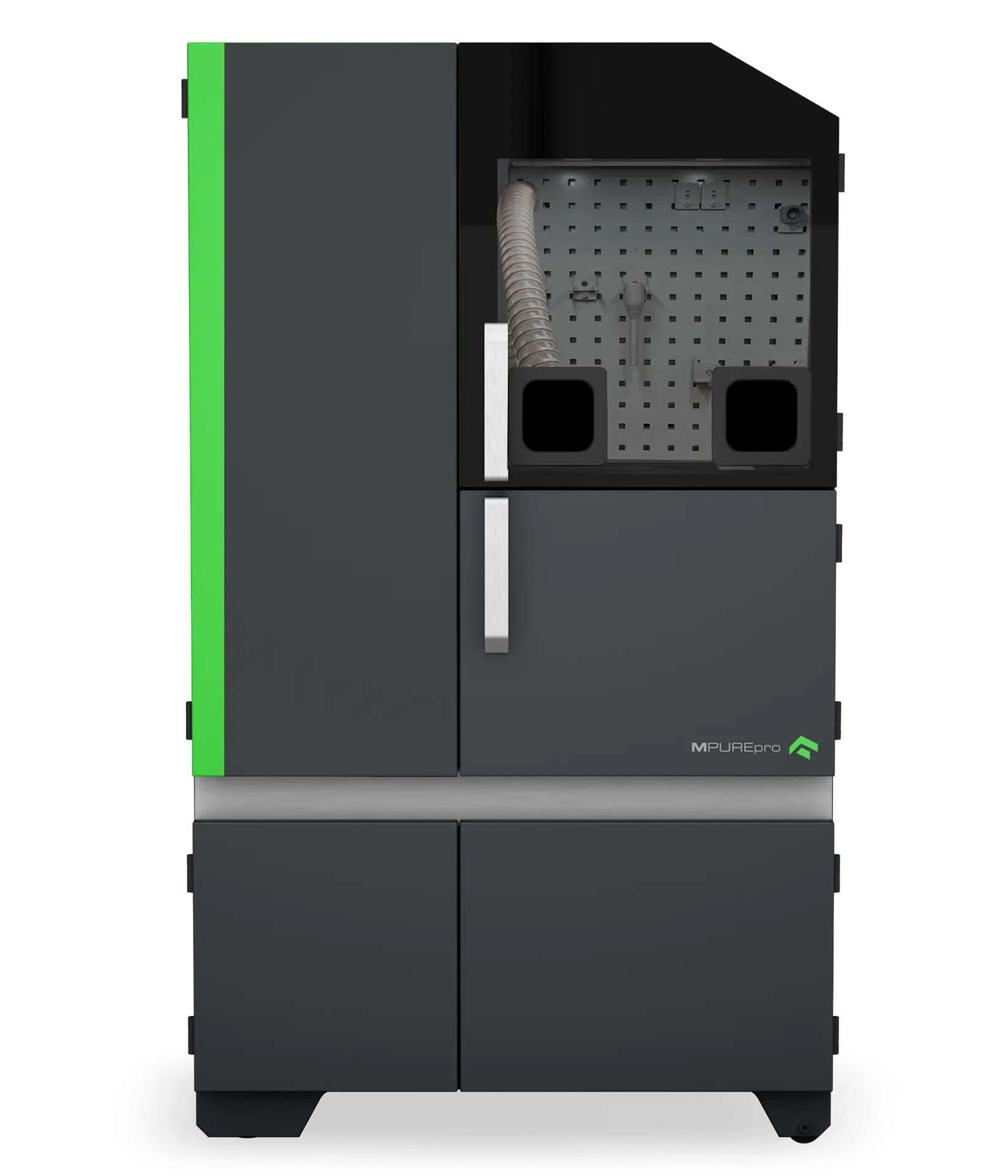

Unpacking chamber w/
_Glove box for bulk powder removal
_Automated turntable for undercut and internal powder removal
_Connector for external ATEX vacuum cleaner

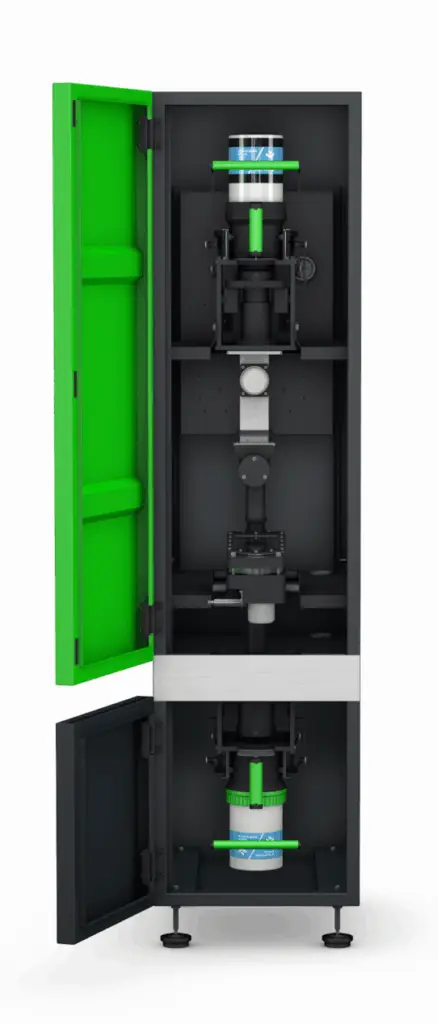

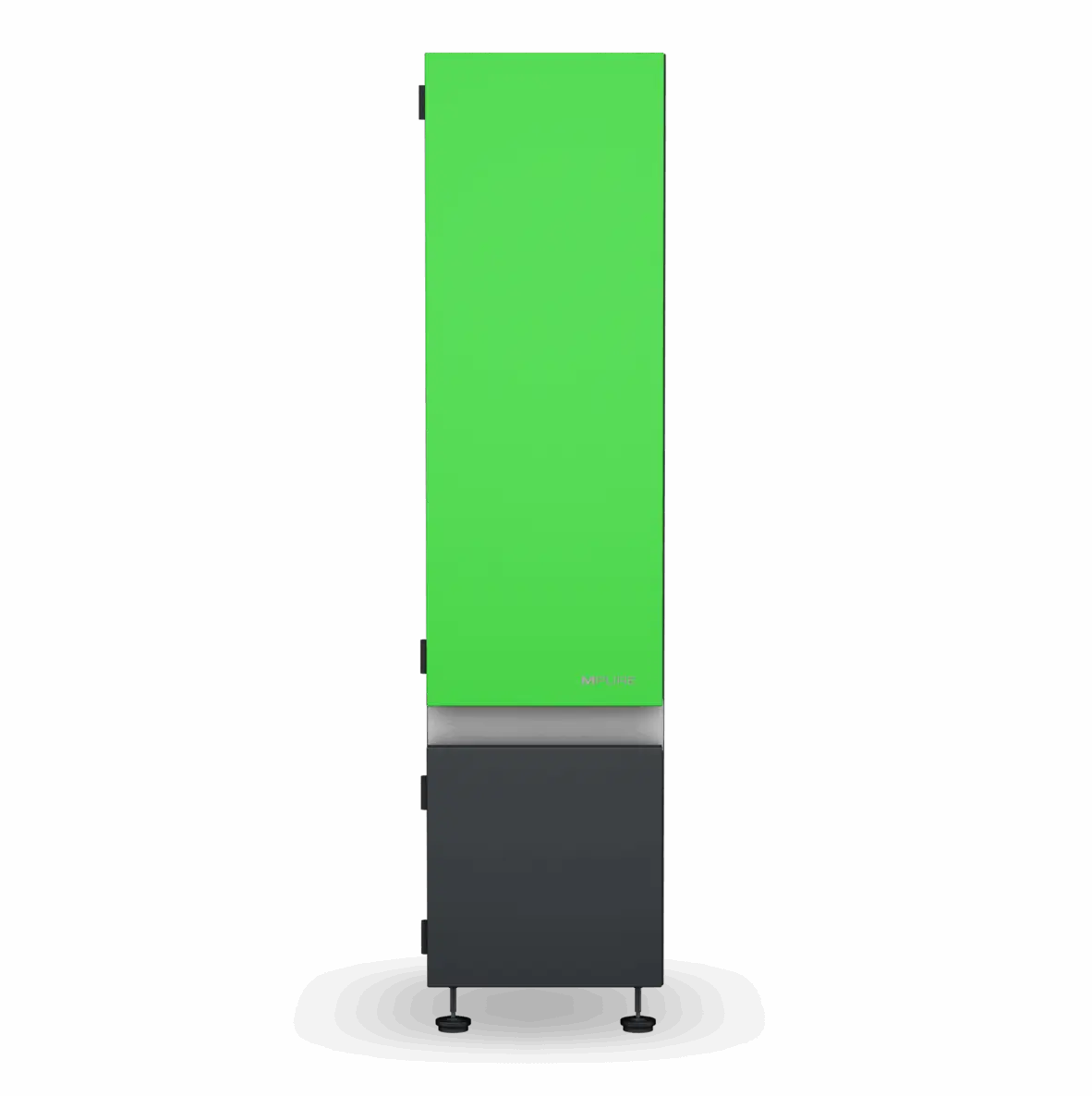

Sieving unit for powder recycling w/
_ultrasonic sieve
_sieved powder in supply cartridge for reusage
_oversize powder in junk cartridge for disposal

includes at delivery:
ultrasonic-sieve with sieve holder
build module not included

not included at delivery: build volume

1. Model
_Adding, arranging and adjusting of models

1.1 Lightweighting
_Building lightweight components with internal lattice structure

2. Support
_Automatic or manual building of supports
_Configurating, saving and applying of presettings

3. Process
_Choice between different, to each material compatible process parameters
_Choice between using predefined or customizable parameters

4. Simulation
_Automatic calculation of…
Thermal simulation
Counter Deformation
Stresses
Re-Coater Impact Detection
Shrinkline/Whiteline Detection

5. Preview
_Layer preview
_Data export
